Sold

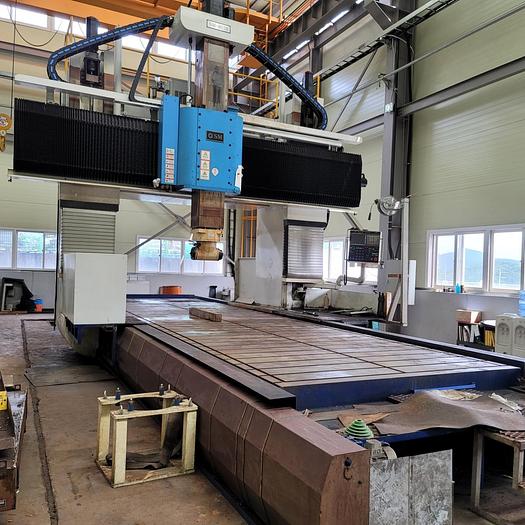

Used SM-8030 Double Column Machine Center
Location:South Korea
Description
Double Column 5-Face Gantry Type Machine Center
Machine sold at “as it, where is” condition.
All information regarding machine tool specification is correct to the best of our ability and knowledge, but we cannot guarantee 100% accuracy. Please clarify & inspect the machine before committing to a sale.
Specifications
| Manufacturer | SM |
| Model | SM-8030W |
| Year | 2016 |
| Condition | Used |
| Country of Origin | Korea |
| Controller | Fanuc 0i-M |
| X/Y/Z/W Travel | 8000 / 3800 / 1200 / 1300 mm |
| Distance between columns | 3100 mm |
| Max. workpiece height | 2100 mm |
| Table Size | 8100 x 2550 mm |
| Max Load | 80 Tons |
| Spindle Speed | 600-6000 RPM |
| Spindle Motor Power | 37/45 Kw |
| ATC | 40 Tools |
| Tool Shank | BT 50 |
| Linear scale feed back | X Y Z W - axis |
| Accessories | Angle head, Manual pulse generator, Chip tray, Chip screw conveyor, Cutting oil system, Lubrication System, Spindle Cooling |
| Machine Dimension (LxWxH) | 13900 x 5500 x 7500 mm |
| Machine Weight (Approx) | 85,000 Kg |
